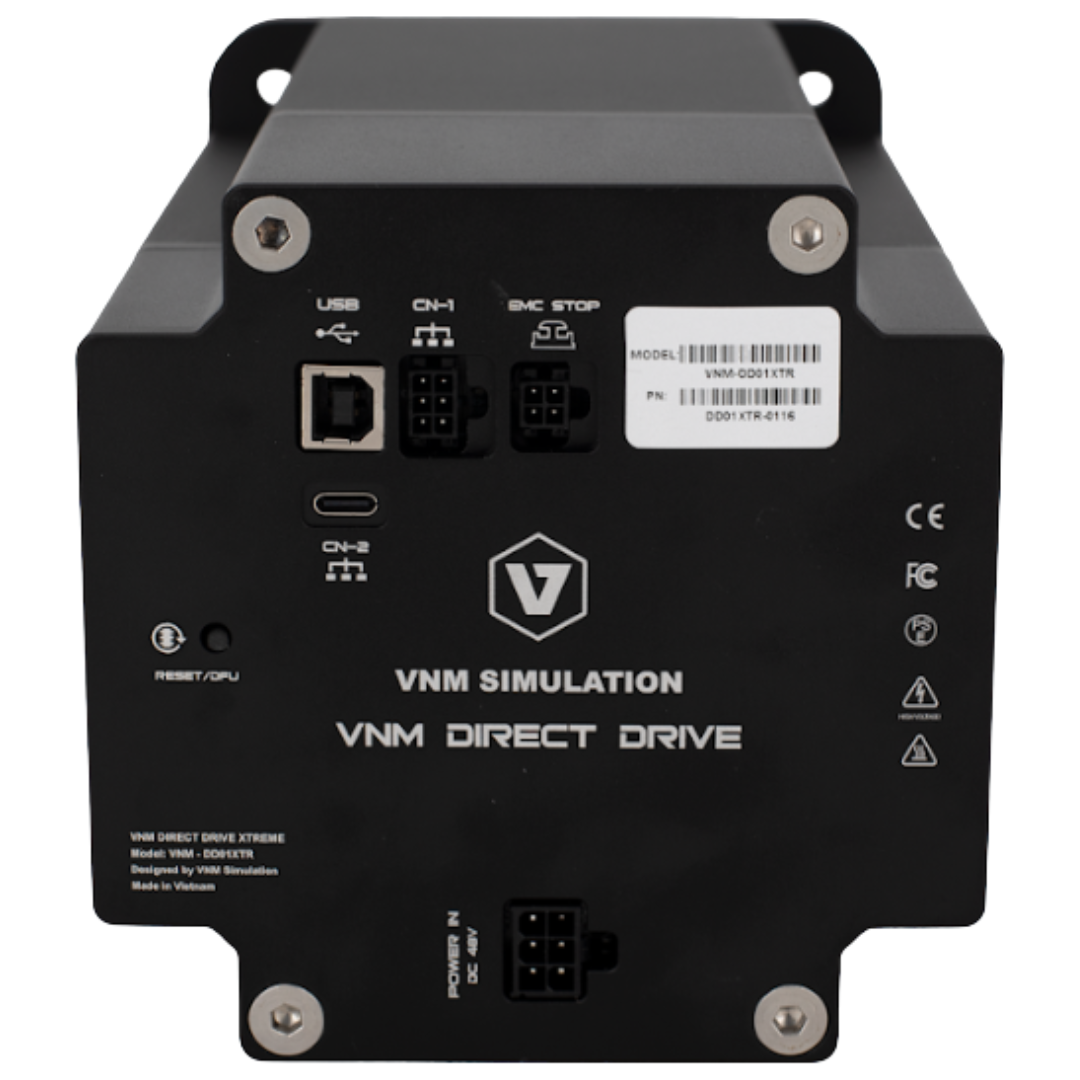

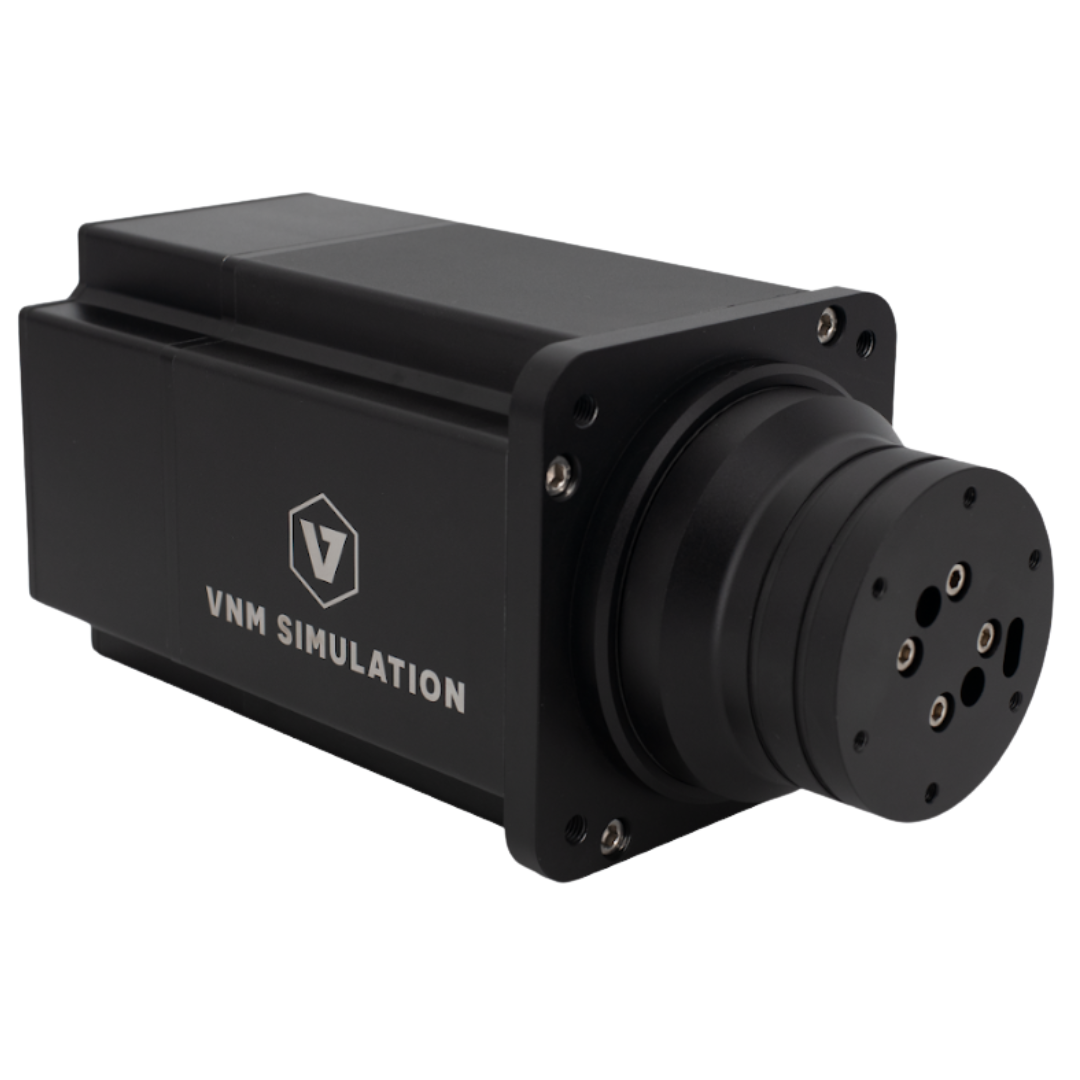

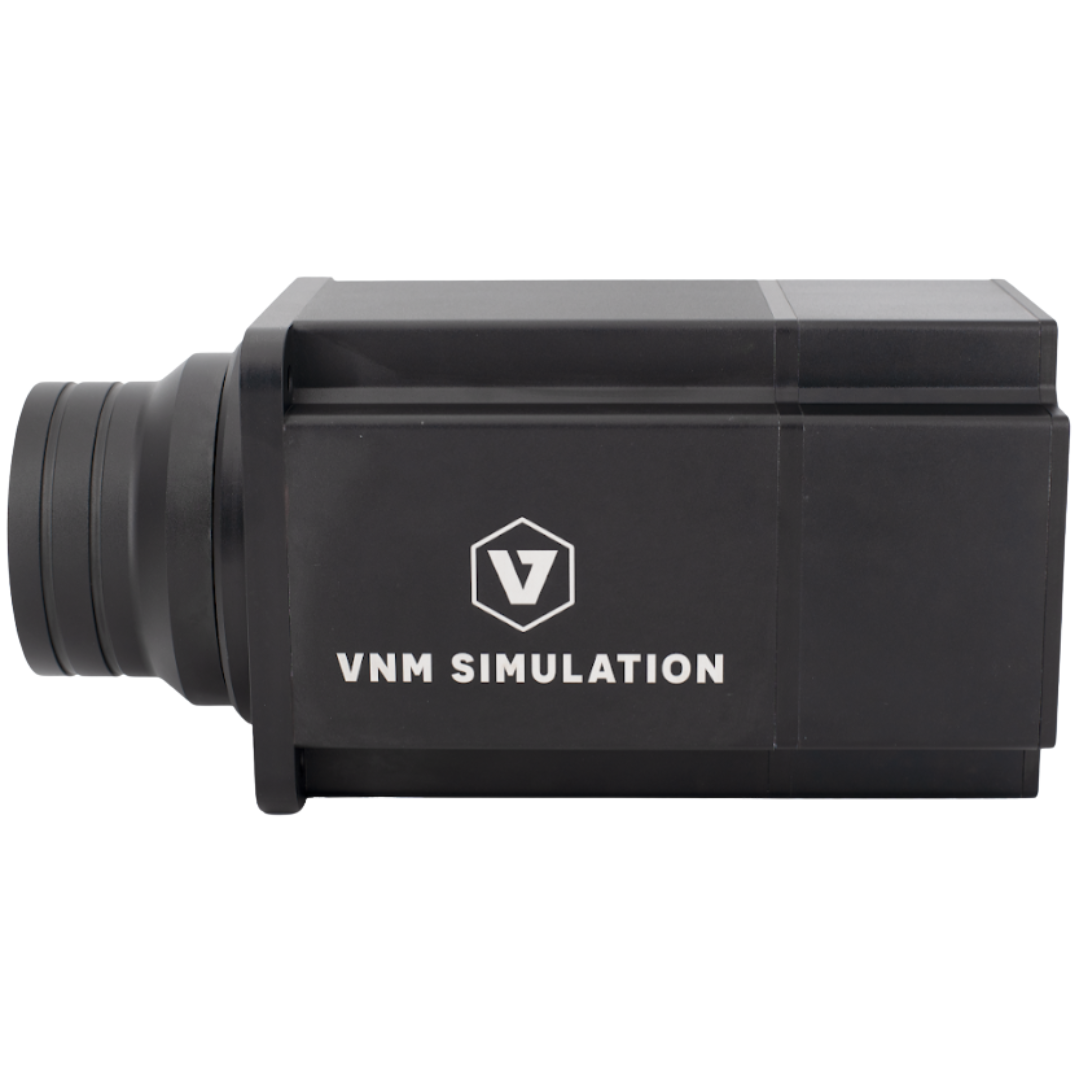

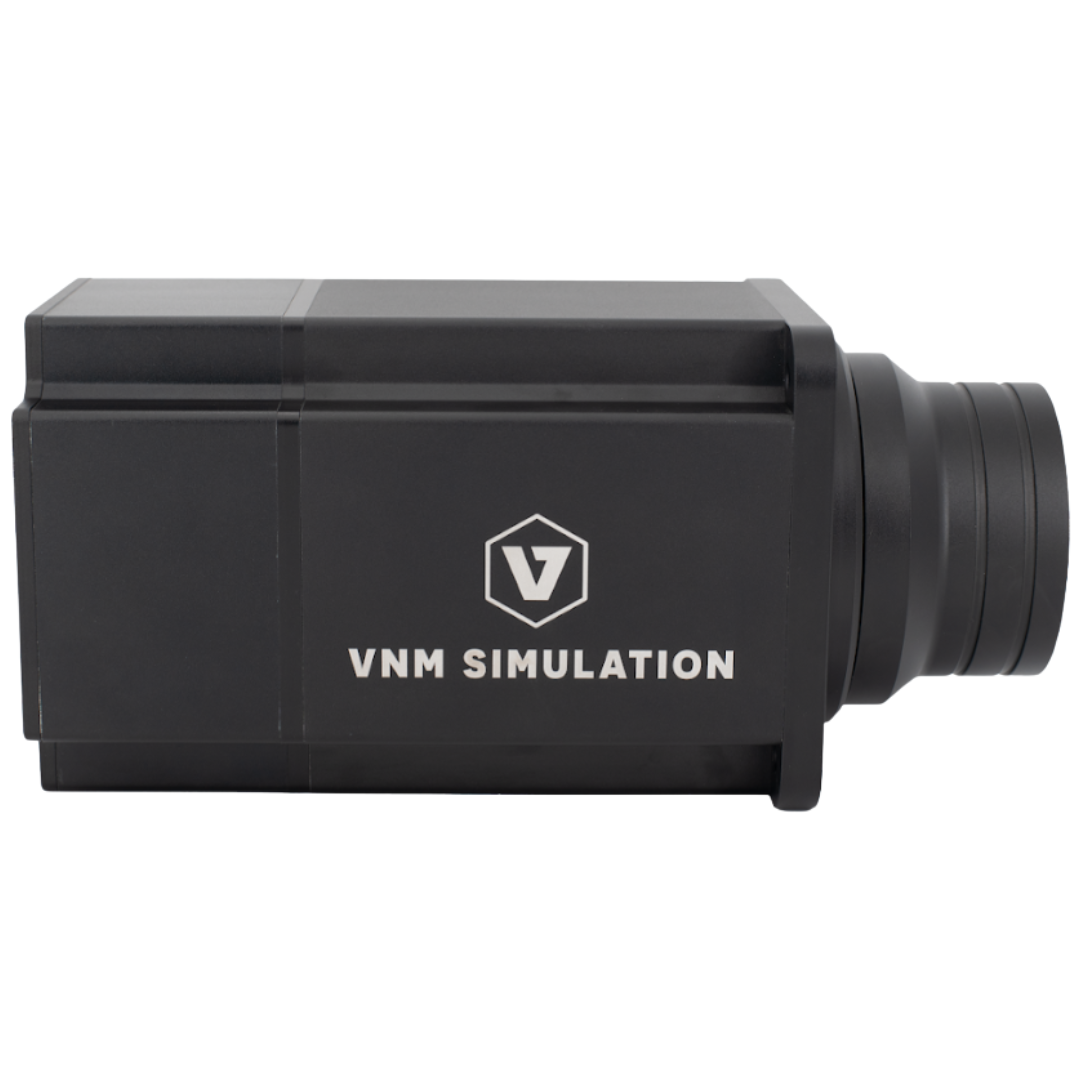

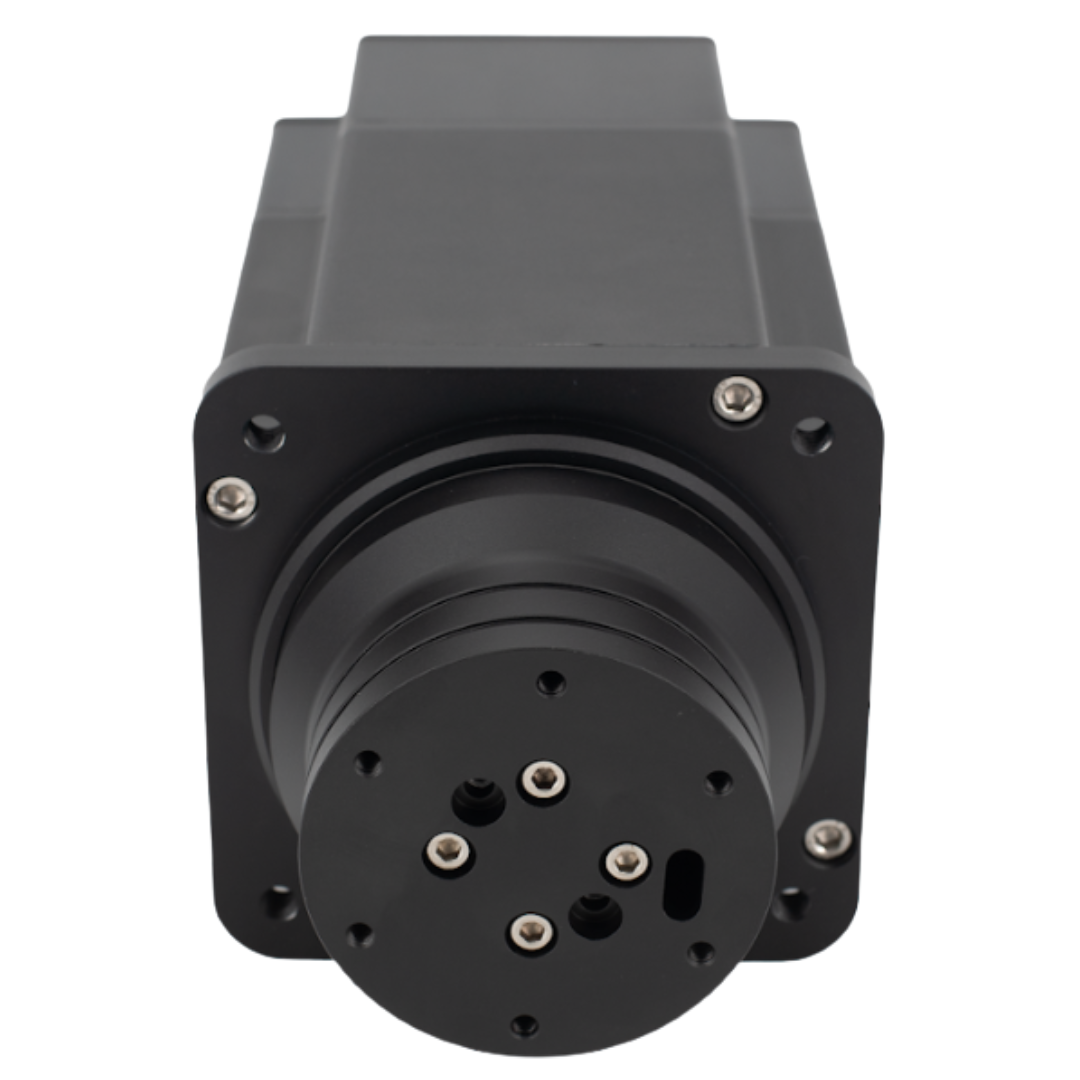

VNM Direct Drive Xtreme Wheelbase

The VNM Direct Drive Xtreme Wheelbase is a 32Nm sim racing direct drive wheelbase built for maximum force feedback strength, precision, and professional level control.

KEY BENEFITS

• Delivers extreme force feedback strength for maximum immersion
• Provides ultra precise detail for improved car control and consistency
• Handles high intensity driving without flex or performance loss
• Offers deep tuning options for personalized force feedback response
• Supports competitive and professional level sim racing setups

WHO IT’S FOR

This wheelbase is designed for advanced sim racers, competitive drivers, and professional training environments that demand the highest level of performance. It is ideal for users running high end rigs who want strong and detailed feedback for GT, formula, rally, and endurance racing. It is best suited for experienced drivers who can fully utilize high torque systems.

KEY FEATURES

The VNM Direct Drive Xtreme Wheelbase uses a custom industrial servo motor paired with a 23 bit absolute encoder to deliver extremely detailed and responsive force feedback. With 32Nm of torque, it communicates subtle grip changes, weight transfer, and surface detail with high clarity. The system supports telemetry based force feedback across major racing titles and includes advanced tuning options for multiple force feedback effects, allowing drivers to fine tune response characteristics such as damping, inertia, and friction. Its robust construction ensures stability under heavy load, while optional hardware upgrades expand compatibility with different steering wheel setups. The VNM Direct Drive Xtreme Wheelbase is engineered for drivers who want uncompromising performance.

TECHNICAL SPECIFICATIONS

• Maximum torque: 32 Nm
• Motor: Customized industrial servo motor with 5 pole pairs
• Encoder: 23 bit absolute encoder with 8,388,608 CPR
• Controller: Integrated 480 MHz MCU
• Dimensions: 130 x 130 x 231 mm
• Weight: 16 kg
• Mounting: Front mount only
• Platform: PC only
• Supported titles: iRacing, Assetto Corsa, Assetto Corsa Competizione, rFactor 2, Le Mans Ultimate
• Additional compatibility: EA WRC, Automobilista 2
• Power: External power adapter included
• QUICK RELEASE NOT INCLUDED

REAL-WORLD USE / EXPERIENCE

On track, this wheelbase delivers extremely strong and detailed feedback that allows drivers to feel even the smallest changes in grip and surface conditions. The high torque output makes it possible to replicate real steering forces, especially in high downforce or heavy vehicles. With proper tuning, the feedback remains controlled and informative rather than overwhelming, helping drivers maintain precision during long sessions. It excels in competitive environments where consistency, reaction time, and detailed feedback make a measurable difference in performance.
