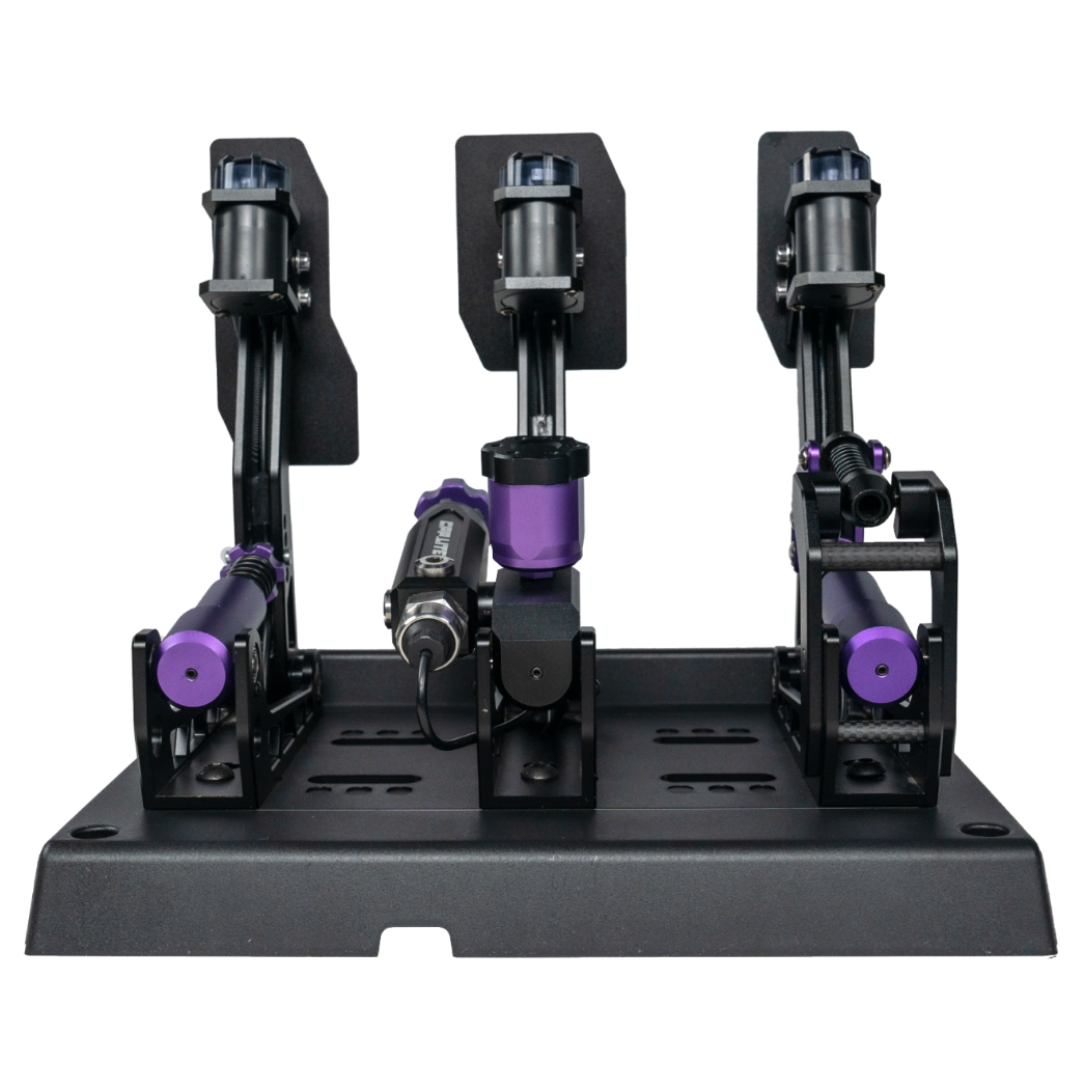

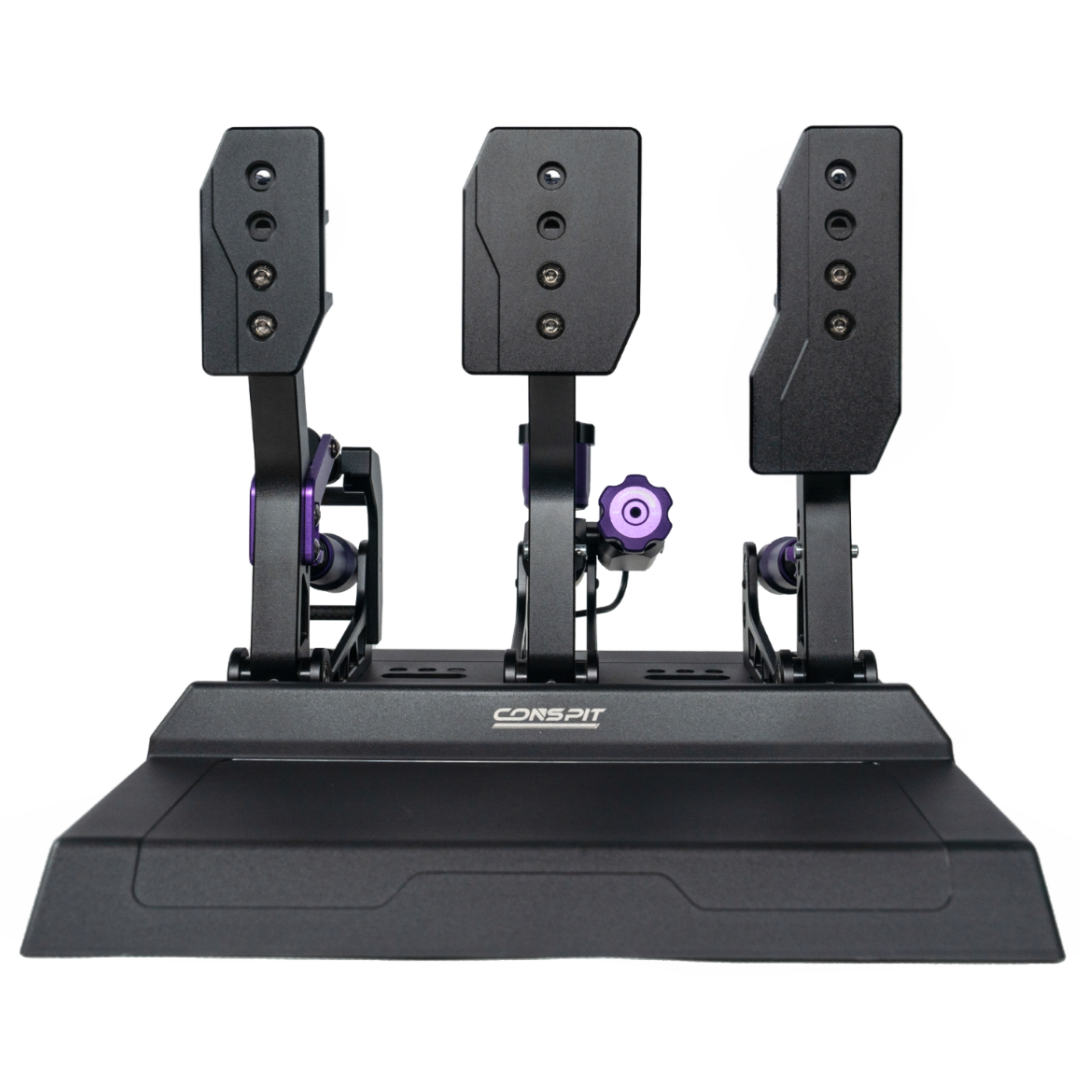

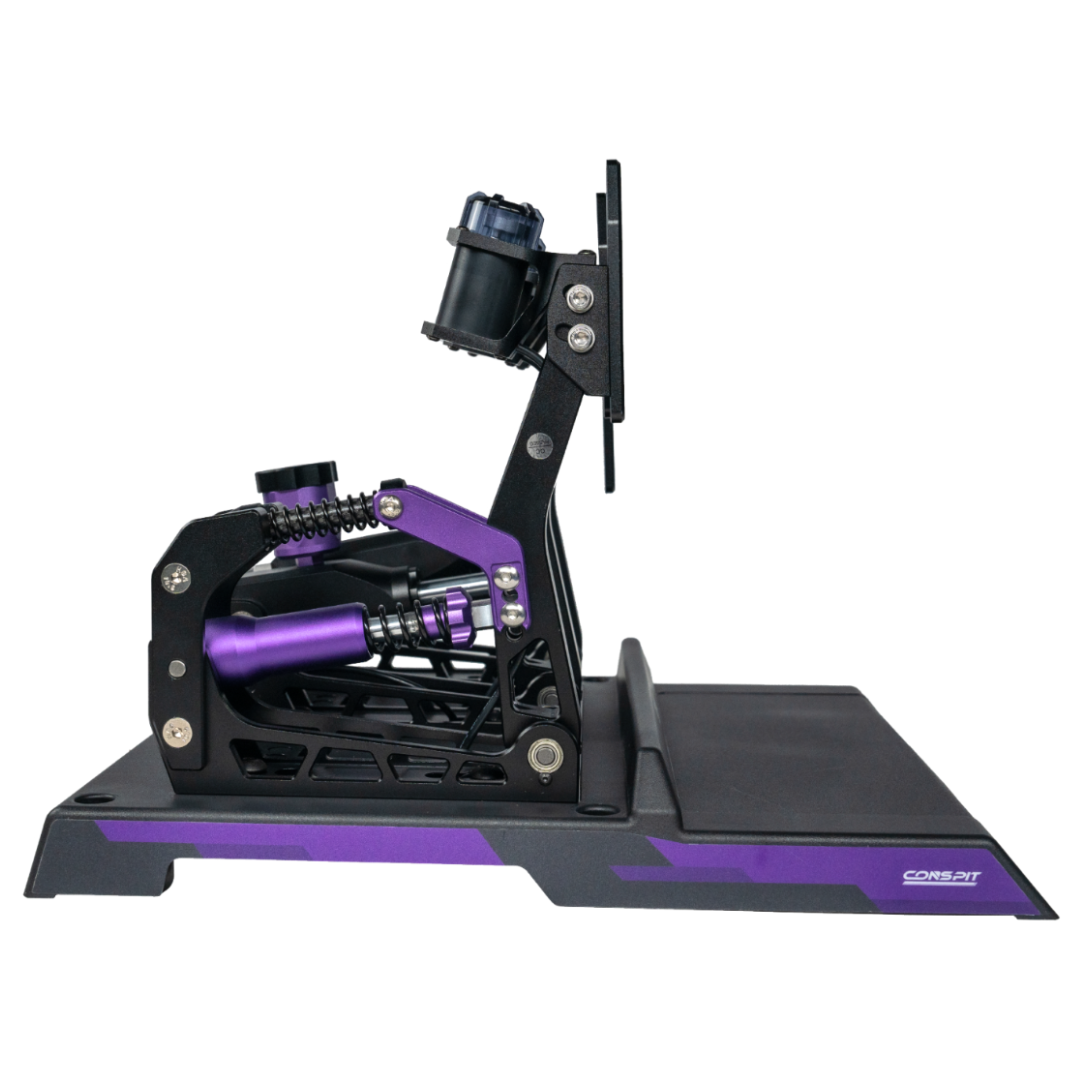

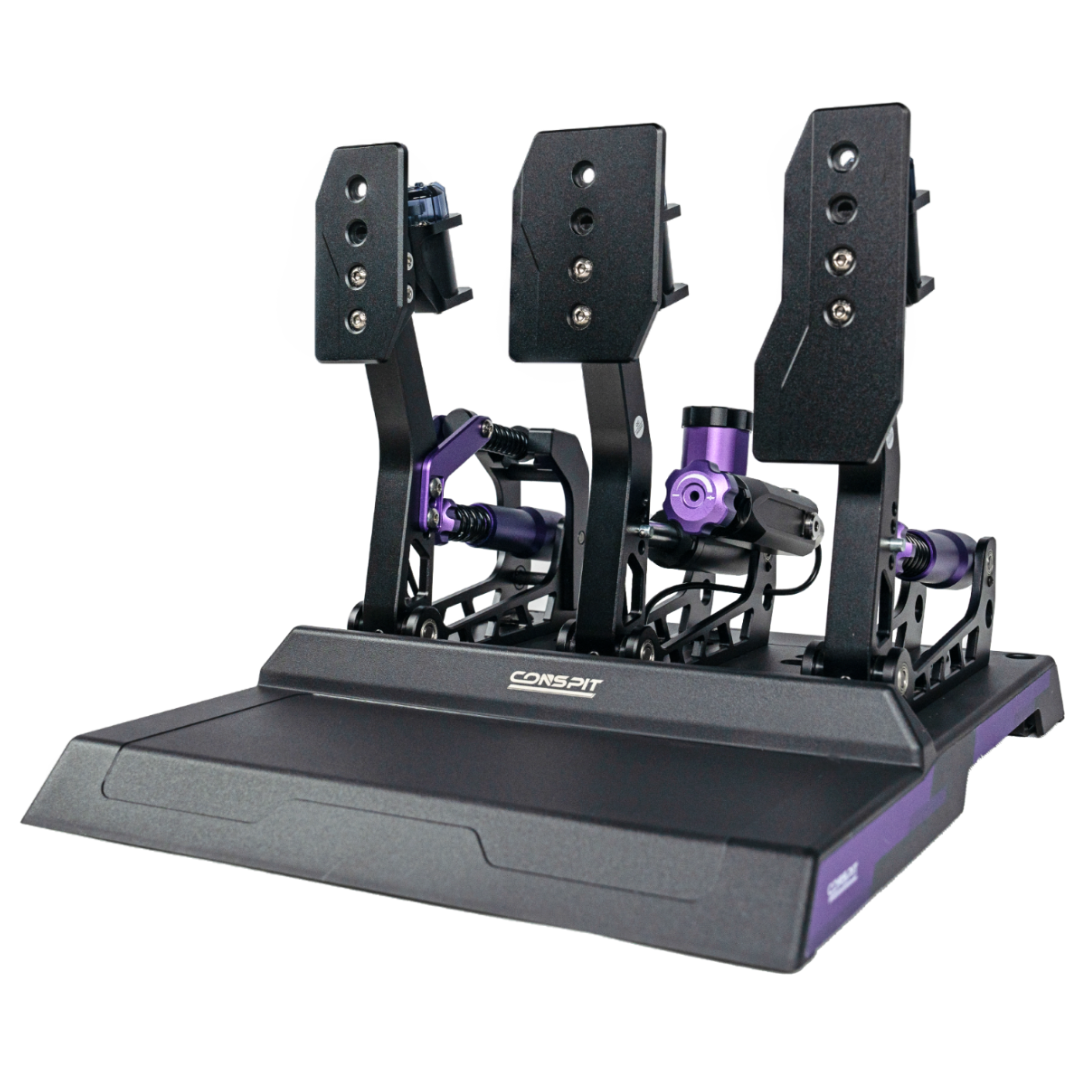

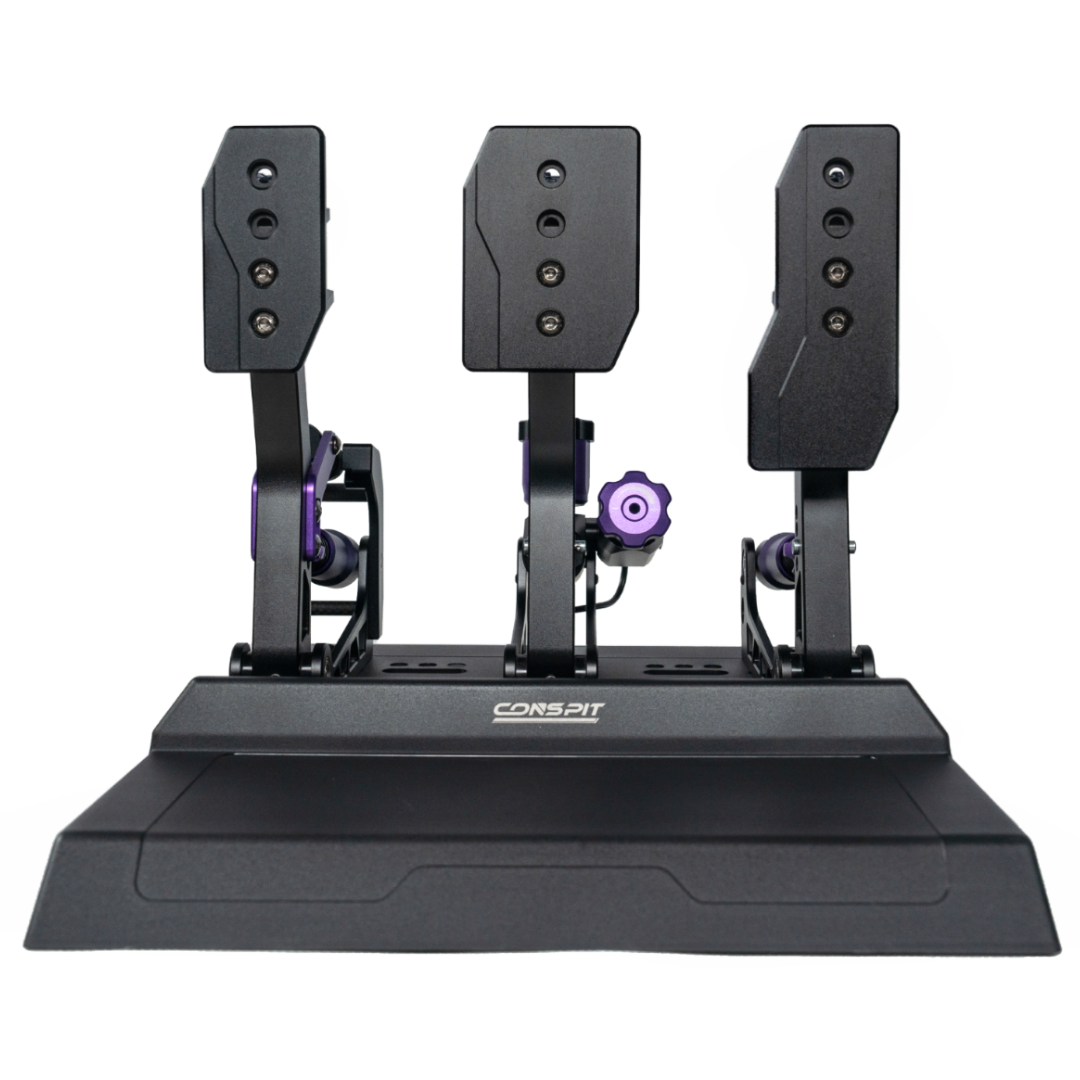

Conspit CPP LITE 3 Pedal Set

The Conspit CPP LITE 3 pedal set is a hydraulic sim racing pedals system designed for precise braking, throttle control, and realistic clutch engagement. Built with a next generation hydraulic system and high-pressure sensor, it delivers consistent and fully adjustable performance.

KEY BENEFITS

• Improves braking precision with pressure-based hydraulic feedback
• Delivers consistent control across brake, throttle, and clutch inputs
• Enables realistic driving techniques including heel-toe and clutch modulation
• Provides deep adjustability to match individual driving style
• Adds immersion with vibration feedback and software tuning

WHO IT’S FOR

This pedal set is for sim racers who want a complete three pedal system with realistic feel and full control over every input. Ideal for intermediate to advanced drivers running manual or hybrid driving styles, including GT, drifting, rally, and formula. It is especially suited for those focused on technique, consistency, and immersion.

KEY FEATURES

The Conspit CPP LITE 3 pedal set features a next generation hydraulic system with an improved internal chamber for better damping and durability. A 10MPa high-precision hydraulic sensor captures brake pressure accurately, allowing controlled and repeatable braking input. The clutch uses a non-linear lever mechanism to simulate real diaphragm spring behavior, creating a more authentic engagement feel. Each pedal offers adjustable force settings and fine-tuning to match different driving styles. The system is constructed from T6 heat-treated aluminum alloy with CNC machining for strength and consistency. Integrated M-DVF vibration feedback works with SimHub to provide additional driving cues, while Conspit Link 2.0 software enables quick setup changes including mapping curves and brake limits.

TECHNICAL SPECIFICATIONS

• Product type: Hydraulic sim racing pedals
• Pedal configuration: 3 pedal set
• Brake system: Next generation hydraulic system with elastomer and damping upgrades
• Sensor: 10MPa high precision hydraulic pressure sensor
• Adjustability: Multi-stage force adjustment and tuning
• Material: T6 heat-treated aluminum alloy with CNC machining
• Max brake pressure: 100 bar
• Dimensions: 327 x 388 x 282 mm
• Platform: PC
• Connection: USB direct and Conspit CAN
• Software: SimHub and Conspit Link 2.0

REAL-WORLD USE / EXPERIENCE

In use, the brake delivers a progressive and stable pressure curve that improves trail braking and consistency under load. The throttle remains smooth and predictable, allowing precise control through corner exits, while the clutch provides realistic engagement for manual driving techniques. The added vibration feedback enhances awareness during braking and traction events. The Conspit CPP LITE 3 pedal set creates a connected and repeatable driving experience that helps translate inputs into consistent lap times.
