Conspit CPP APEX

The Conspit CPP APEX hydraulic sim racing pedals deliver pressure-based braking, adjustable pedal feel, and modular expansion for serious sim racers. Designed with a dual-chamber hydraulic system, it brings high-end pedal performance into a more accessible setup.

KEY BENEFITS

• Improves braking consistency with true hydraulic pressure feedback
• Enables precise trail braking and threshold control under load
• Adapts to different driving styles with adjustable pedal feel
• Supports long sessions with stable performance and durability
• Expands from 2 pedal to 3 pedal setup without replacing the system

WHO IT’S FOR

This pedal set is built for sim racers who want hydraulic braking performance without stepping into ultra-premium pricing. It suits intermediate to advanced drivers focused on consistency, braking control, and realism. Ideal for GT, endurance, drifting, and mixed-discipline setups where adaptability and reliable feedback matter.

KEY FEATURES

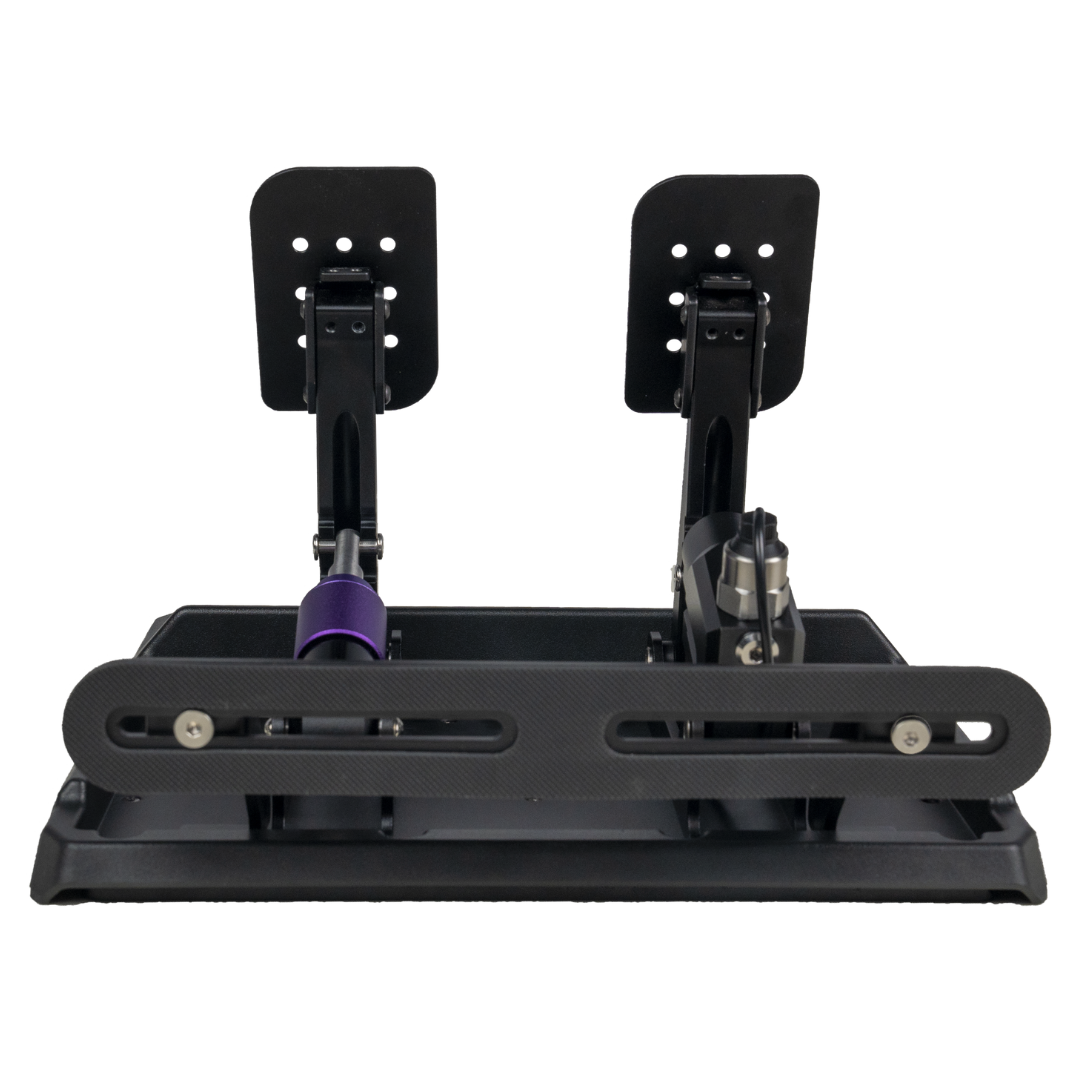

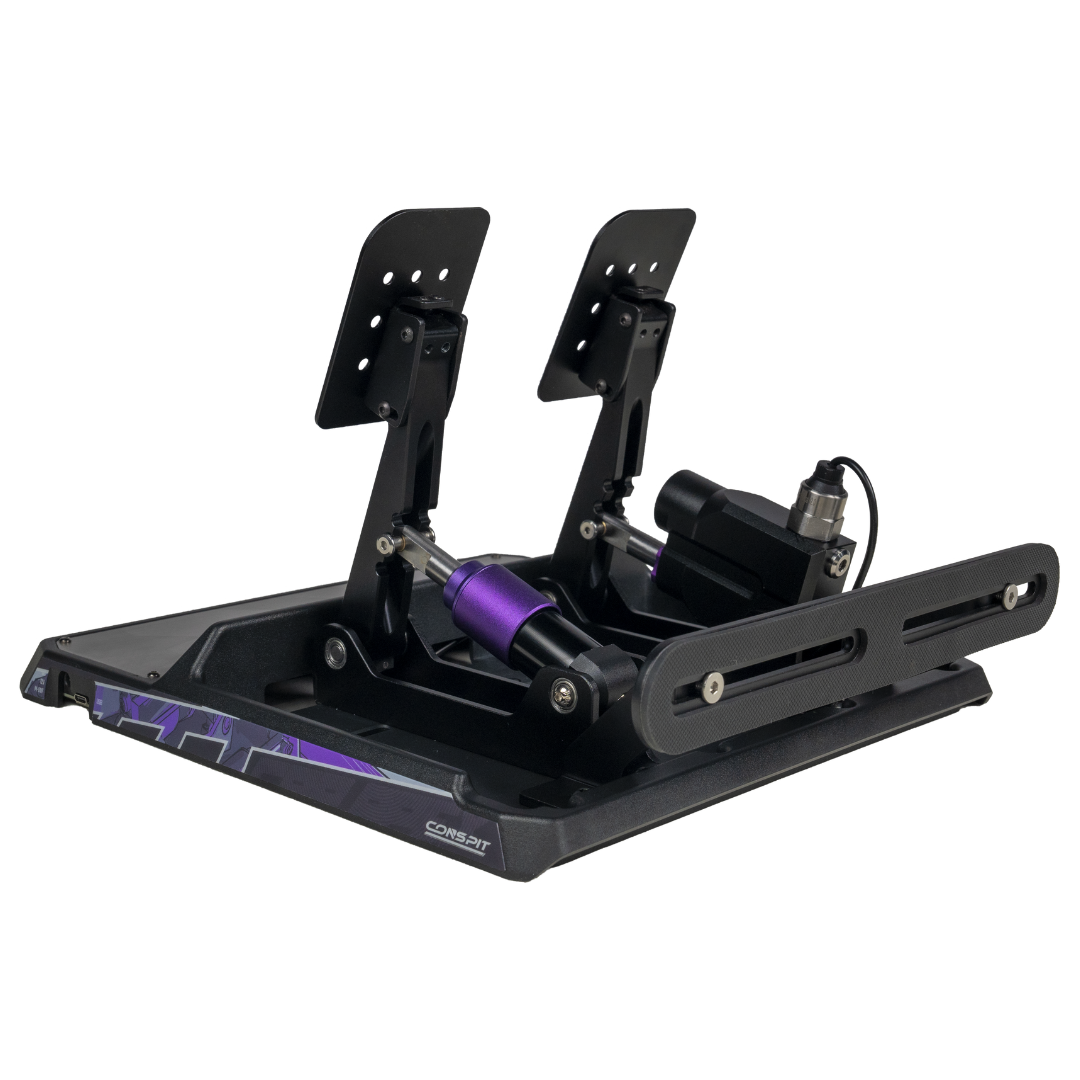

The Conspit CPP APEX uses a vertical dual-chamber hydraulic system that combines hydraulic and elastomer elements into a compact and durable design. A 10MPa hydraulic sensor captures brake pressure with high accuracy, translating input into consistent braking response. The two-stage brake feel combines a spring for initial bite and an elastomer for progressive resistance, allowing drivers to fine-tune pedal response. The throttle features an enclosed design with a Hall sensor for stable and precise input, while the overall structure is built from T6-treated aluminum with CNC machining for strength and longevity. The system includes a modular architecture that allows upgrading from a two pedal setup to a full three pedal configuration. Integrated mounting options support both rig and floor setups, and Conspit Link 2.0 software enables customization of input curves and limits.

TECHNICAL SPECIFICATIONS

• Product type: Hydraulic sim racing pedals
• Pedal configuration: 2 pedal standard, optional 3 pedal upgrade

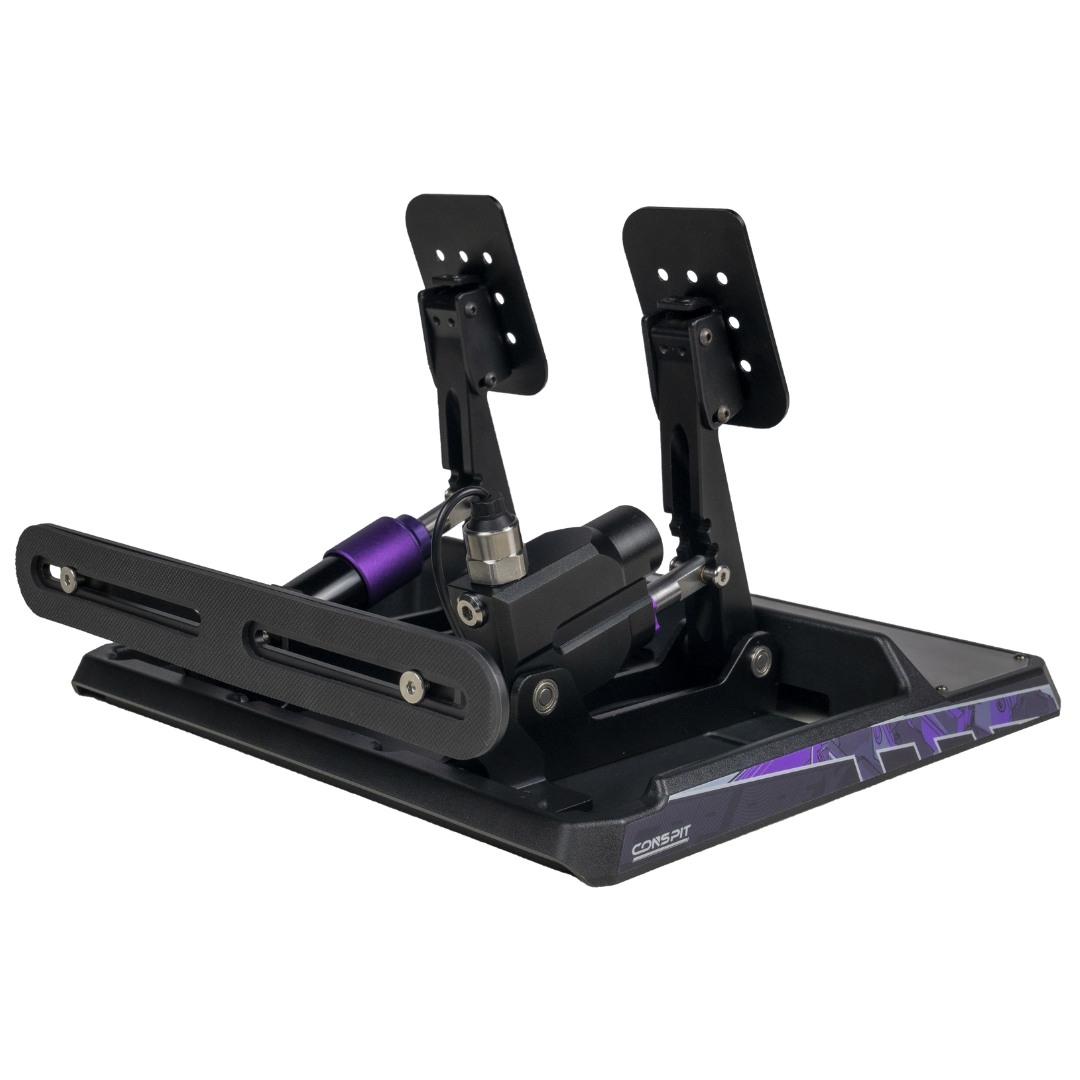

• Brake system: Vertical dual-chamber hydraulic and elastomer design
• Sensor: 10MPa high precision hydraulic pressure sensor
• Brake feel: Two-stage spring and elastomer system

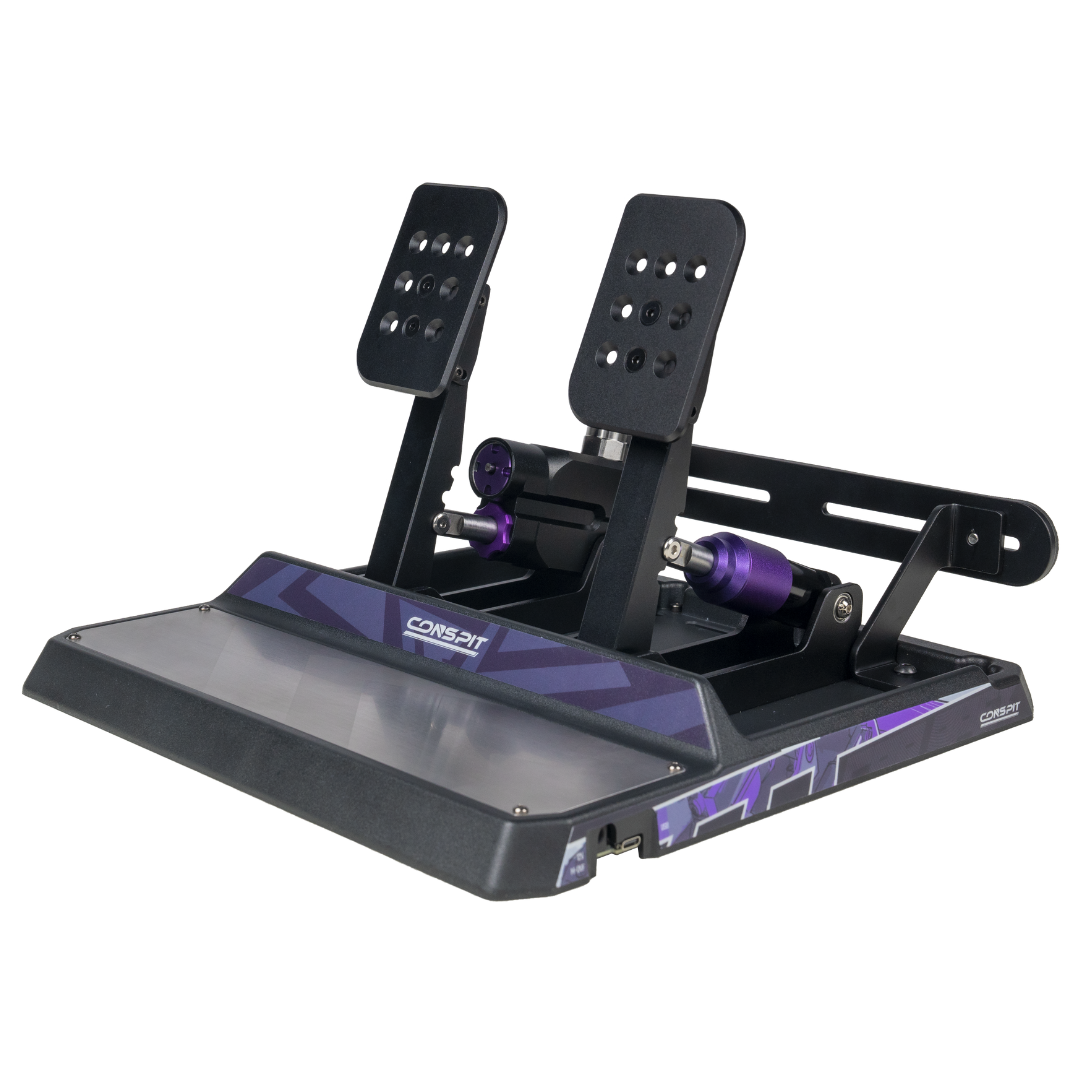

• Adjustability: Multi-stage adjustment with preload tuning and swappable elastomers
• Material: Aluminum alloy with carbon steel components
• Construction: CNC machined with T6 heat treatment
• Max brake pressure: 100 bar
• Dimensions: 328 x 333 x 227 mm
• Platform: PC
• Connection: USB direct and Conspit CAN
• Software: Conspit Link 2.0 and SimHub compatibility
• Mounting: Aluminum profile rigs and floor mount with included bracket

REAL-WORLD USE / EXPERIENCE

On track, the brake delivers a clear transition from initial bite to firm pressure, making it easier to control braking zones and carry speed into corners. The hydraulic system maintains consistency across long sessions, reducing variability lap to lap. The throttle remains smooth and predictable, while the optional clutch adds realism for manual driving techniques. The Conspit CPP APEX hydraulic sim racing pedals provide a controlled and repeatable driving feel that translates directly into improved confidence and lap time consistency.
